711009
Price 1-19 units: £19.98 each
Price 20+ units: £17.98 each
All prices are net trade + VAT. Carriage paid value is £150.00 net. T: 01992 582033 E: sales@emcogroup.co.uk
IP65 NM/M3 BULKHEAD
SEMI-RECESSING KIT
EXIT DROP-DOWN KIT
HIGH OUTPUT FITTING
711009 is an IP65 3W bulkhead with polycarbonate diffuser and ABS base. Rear BESA fixing, 20mm entry to each end, one to side.
Manual testing using a key switch or automatic self-testing can be selected by internal dip switch.
Hinged gear tray, and supplied with a self-adhesive legend kit with a 16 metre viewing distance when applied.
Dimensions: 355 x 115 x 63mm
Kit to enable the 711009 bulkhead to be mounted semi-recessed.
Polycarbonate with steel butterfly clips for ease of fixing.
Cut-out: 360mm x 126mm
Drop down-diffuser supplied with two self-adhesive legend kits so that a single or double-sided exit sign can be created.
When fitted to the 711009 bulkhead, this diffuser maintains the IP65 rating so it is suitable for interior use, or in exposed and damp locations such as car parks and plant areas.
The diffuser is 185 deep, total depth 218mm when mounted on the 711009.
The viewing distance of the legend kits is 20 metres.

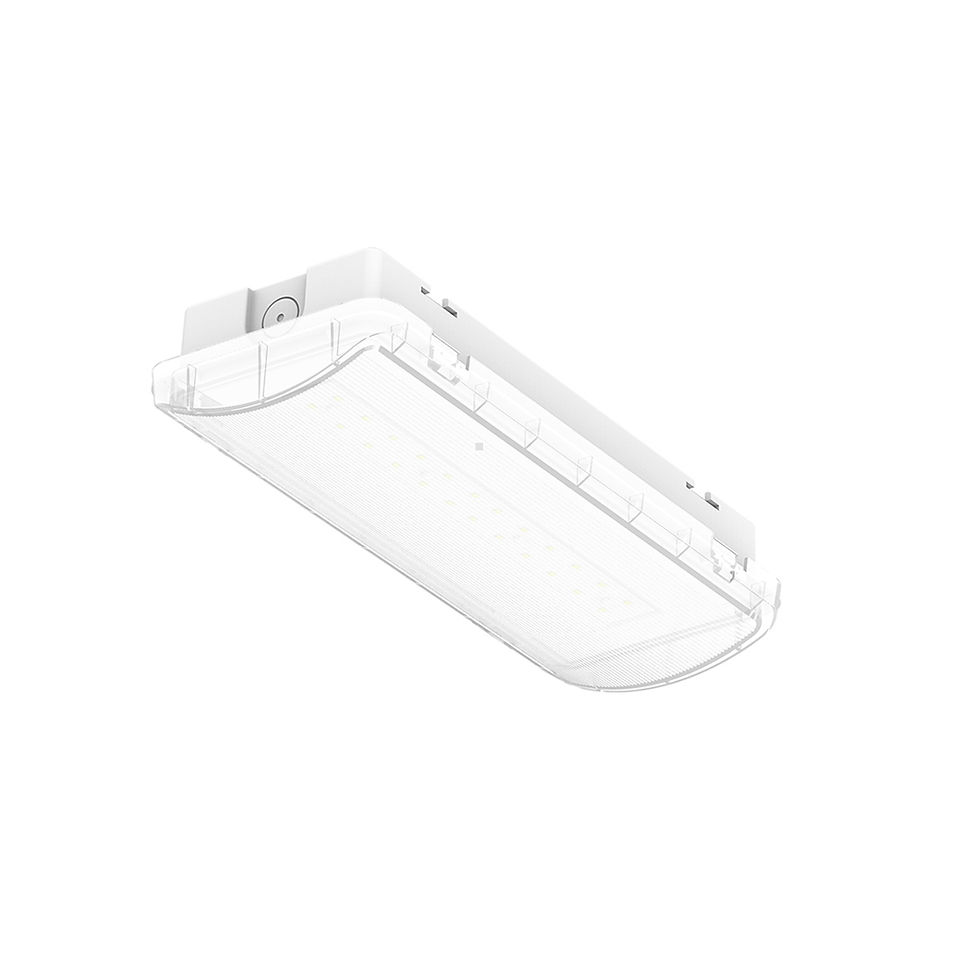

719148 is a high output IP65 bulkhead offering 1200 lumens in emergency.
This emergency bulkhead is self-testing and it can be used in maintained or non-maintained modes.
Ideal for high risk task areas such as commercial kitchens, workshop areas, and processes in factories that present a risk.
Dimensions: 321 x 167 x 83mm
711009/RECKIT
Price: £11.00 each
711009/EXTKIT
Price: £15.00 each
719148
Price: £173.98 each
