All prices are net trade + VAT. Carriage paid value is £150.00 net. T: 01992 582033 E: sales@emcogroup.co.uk
532011
600x600 LED LAY-IN PANEL C/W DRIVER
MAINTAINED EMERGENCY PACK FOR 532011 PANELS
534001
1200x600 LED LAY-IN PANEL C/W DRIVER
MAINTAINED EMERGENCY PACK FOR 534001 PANELS
The 532011 is deigned to suit all lay-in 600 x 600 exposed grid ceilings.
TPA diffuser and suitable for use in UGR<19 lighting installations, the panel is complete with a 750mA, 230v AC mains supplied, flicker-free driver.
3CCT: Switchable colour temperatures of 3000, 4000, and 6000K.
Switchable output: 20w or 36w so light output ranges from 2400 to 4680 lumens.
Matt white finish to frame and body.
Class 2, IP20, suitable for interior use.
Suitable for offices, classrooms, open plan and circulation areas, corridors, and other areas requiring a 600x600 panel.
Dimensions: 595 x 595 x 35mm.
The 732009 emergency conversion is designed to be easy and quick to install for engineers on site.
It comes pre-wired with jack connectors so that the driver to panel interconnection is not only fast, but there is also a very reduced risk of reversed connection which can damage the equipment.
This kit is for maintained operation and the LED panel can be switched on and off along with other panels on the same lighting circuit.
Whether the panel is on or off, if the mains supply or lighting circuit were to fail, the LED panel would operate in emergency mode.
This emergency kit will operate the light for 3 hours.
The 534001 is deigned to suit all lay-in 1200 x 600 exposed grid ceilings.
TPA diffuser and suitable for use in UGR<19 lighting installations, the panel is complete with a 1500mA, 230v AC mains supplied, flicker-free driver.
3CCT: Switchable colour temperatures of 3000, 4000, and 6000K.
Output: 60W 6,300 Lumens.
Matt white finish to frame and body.
Class 2, IP20, suitable for interior use.
Suitable for offices, classrooms, open plan and circulation areas, corridors, and other areas requiring a 1200x600 panel.
Dimensions: 1195 x 595 x 35mm.
The 734009 emergency conversion is designed to be easy and quick to install for engineers on site.
It comes pre-wired with jack connectors so that the driver to panel interconnection is not only fast, but there is also a very reduced risk of reversed connection which can damage the equipment.
This kit is for maintained operation and the LED panel can be switched on and off along with other panels on the same lighting circuit.
Whether the panel is on or off, if the mains supply or lighting circuit were to fail, the LED panel would operate in emergency mode.
This emergency kit will operate the light for 3 hours.
532011
Price: £35.98 each
732009
Price: £35.98 each
534001
Price: £85.00 each
734009
Price: £42.00 each

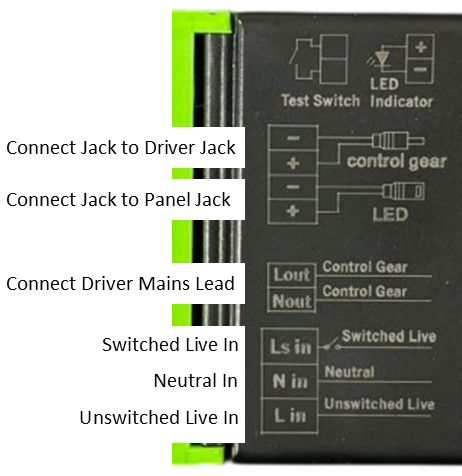

EMERGENCY PACK CONNECTIONS
Once the connections shown have been made, the charge indicator, not illustrated, which is on a lead with a LED holder and pre-wired to the conversion kit, can be placed in a convenient position.
542001/EM
Price: £17.00 each
Surface Mounting Frame for 532011 595x595 panel. It has sufficient space for the 732009 emergency conversion kit.
600 x 600 x 70mm
Recessed Plasterboard Mounting Kit for 532011 595x595 panel for use when being mounted in plasterboard ceilngs
530099
Price: £5.60 each
30/60/90 Minute Fire Hood for 532011 595x595 panel. Tested to BS476: Part 2.
600 x 600 x 300mm
599001
Price: £42.00 each
Wire Suspension Kit for 532011 595x595 panel.
With PA4*30mm tapping screws. 1.5 mtr cable length
530089
Price: £10.00 each
