3W IP20 3 hour maintained LED emergency exit sign manufactured from sheet steel finished in white enamel, with polycarbonate legend panel an threshold downlight.

711009

Price 1-19 units: £19.98 each

Price 20+ units: £17.98 each

All prices are net trade + VAT. Carriage paid value is £150.00 net. T: 01992 582033 E: sales@emcogroup.co.uk

Non-maintained bulkhead emergency light with a self-adhesive exit legend kit shown applied with an arrow pointing to the right.

BULKHEAD WITH LEGEND

711009 is an IP65 3W bulkhead with polycarbonate diffuser and ABS base. Rear BESA fixing, 20mm entry to each end, one to side.

Manual testing using a key switch or automatic self-testing can be selected by internal dip switch.

Hinged gear tray, and supplied with a self-adhesive legend kit with a 16 metre viewing distance when applied.

Dimensions: 355 x 115 x 63mm

SIGN WITH ARROW UP

752441 £27.98 each

SIGN WITH ARROW DOWN

752241 £27.98 each

SIGN WITH ARROW RIGHT

752341 £27.98 each

SIGN WITH ARROW LEFT

752141 £27.98 each

751041

Price: £35.98 each

Deep, double-sided diffuser that can be fitted to the emcosafe 711009 emergency lighting bulkhead that can turn it into a single or double sided exit sign.

EXIT DROP-DOWN KIT

Drop-down diffuser supplied with two self-adhesive legend kits so that a single or double-sided exit sign can be created.

When fitted to the 711009 bulkhead, this diffuser maintains the IP65 rating so it is suitable for interior use, or can be used in exposed and damp locations such a as car parks and plant areas.

The diffuser is 185 deep, total depth 218mm when mounted on the 711009.

The viewing distance of the legend kits is 20 metres.

711009/EXTKIT

Price: £15.00 each

SHEET STEEL EXIT BOX

SLIM MOULDED EXIT SIGN

A traditional exit box manufactured from sheet steel and finished in white epoxy enamel with a polycarbonate legend panel.

IP20 for interior use, it is a robust and attractive sign with a threshold downlight panel.

Being sheet steel it is easily hole-cut for surface conduit entry. Rear entries and keyholes are provided within the backplate of the enclosure.

Dimensions: 392 x 192 x 66mm

Viewing Distance: 30 metres

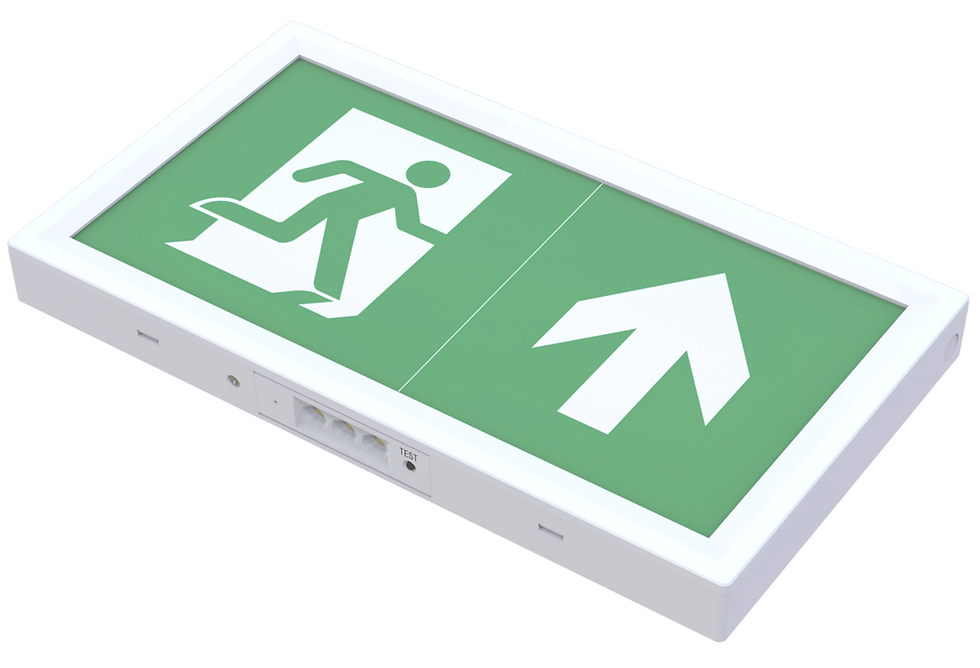

Slim exit sign moulded in polycarbonate, IP20, for interior use.

Automatic self-testing or manual testing via keyswitch can be selected by the installer.

Split legend feature allows the arrow to be rotated and the running man reversed to create the desired legend.
